Product Description:
The capping head lift of the Media Filling Machine is powered by a
set of high-power servo motors, ensuring the secure and accurate
sealing of bottles. This feature guarantees that the cell culturing
medium will be free from contamination, which is crucial in
maintaining the integrity of the final product.
The measurement method of the Media Filling Machine is comprised of
six sets of precision pump heads, each driven by servo motors. The
filling volume can be set and adjusted on the touch screen,
ensuring an exact and consistent volume of liquid is filled into
each bottle. This feature is especially important in cellular
culturing medium filling as the accuracy of the volume affects both
the efficacy and safety of the final product.
The Media Filling Machine is compatible with bottle specifications
of 125ml and 500ml, providing flexibility for a range of cell
culture applications. The filling area is rated at 100 Level A
Class, ensuring a sterile and controlled environment for the
preparation of cell culture media.
The Media Filling Machine is equipped with a state-of-the-art PLC
system from Siemens, a reputable German company known for its
quality and reliability. This feature guarantees smooth and precise
operation of the filling machine.
Overall, the Media Filling Machine is a highly advanced and
efficient solution for the precise filling of cell culturing
medium. As a cell culture media filler, it provides accuracy,
consistency, and reliability, which are crucial in the production
of cellular therapies and biologics. Researchers and manufacturers
in the biotech and pharmaceutical industries can trust in the Media
Filling Machine to provide high-quality cell culture media for
their applications.
Features:
- Product Name: Media Filling Machine
- Power supply:
- Culture medium filling machine, Cellular culturing media filler,
Cell culturing media filler
- Filling And Capping Machine: 220v 50Hz
- Heat Shrinking Machine And Labeling Machine: 380v 50Hz
- Compressed air: 0.4~0.7Mpa
- Decontamination area:
- The High-efficiency Filter HEPA Coverage Scheme Of The Filling And
Capping Machine Is Divided Into Three Areas Q1, Q2, Q3
- Equipped With A Separate 100-level Laminar Flow Hood
- The Wind Pressure Can Be Adjusted To : Q3>Q2>Q1
- Bottle separating method: Reciprocating Bottle Feeding Module
Driven By Servo Motor
- Capping head lift: A Set Of High-power Servo Motor Control
Technical Parameters:
| Capping head lift | A Set Of High-power Servo Motor Control |
| Power supply | Filling And Capping Machine: 220v 50Hz. Heat Shrinking Machine And
Labeling Machine: 380v 50Hz |
| Materials in contact with liquids | Stainless Steel 316L, Polymer Material For Medicine |
| Touch screen | Fuji From Japan |
| Production line composition | Square Bottle 6 Heads Filling And Capping Machine → Automatic
Sleeve Labeling Machine → Automatic Heat Shrinking Machine → Double
Side Labeling Machine → Automatic Bottle Collection Platform |
| Measurement method | Six Sets Of Precision Pump Heads, Driven By Servo Motors, Set And
Adjust The Filling Volume On The Touch Screen |
| Level control | Equipped With Weighing Module |
| Decontamination area | The High-efficiency Filter HEPA Coverage Scheme Of The Filling And
Capping Machine Is Divided Into Three Areas Q1, Q2, Q3, Equipped
With A Separate 100-level Laminar Flow Hood, And The Wind Pressure
Can Be Adjusted To : Q3>Q2>Q1 |
| Capping torque control | Each Capping Unit Is Controlled By A Servo Motor, And The Capping
Torque Of The Servo Motor Is Preset. When Capping, If The Preset
Capping Torque Is Not Reached, The Servo Motor Will Automatically
Tighten The Cap To The Preset Torque |
| Capping method | Six Groups Of Capping Units Controlled By Servo Motors, Each Group
Is Controlled By Servo Motors Individually, Three-jaw Capping Head.
The Bottle Cap Can Be Unscrewed In The Reverse Direction And
Screwed On In The Forward Direction |
Keywords: Cell culturing media filler, Cellular culture medium
filler, Cell culture media filler
Applications:

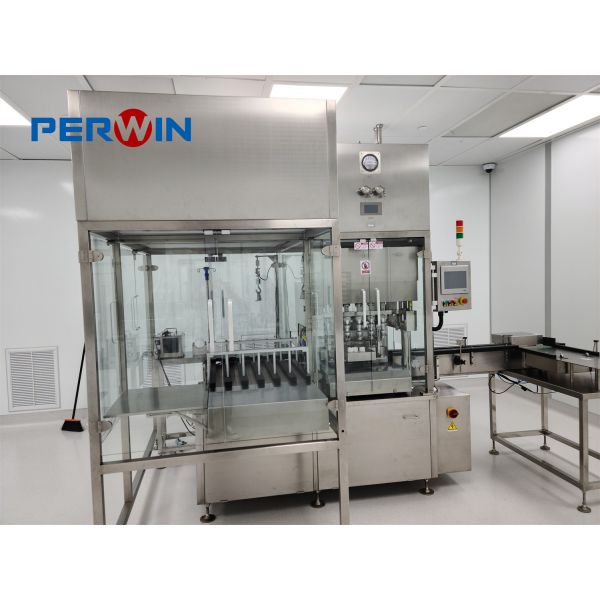

The PERWIN PW-ZMGX660 Cellular Culturing Media Filler is a
top-of-the-line cell culturing medium filling machine designed and
manufactured in Qidong, Jiangsu. It is a versatile machine that can
be used in a variety of settings, making it an ideal choice for
both small and large-scale applications.
With its CE, ISO, GMP, UL, TUV, and SGS certifications, this
machine is guaranteed to meet the highest standards for quality and
safety. It has a minimum order quantity of 1 and a negotiable
price, with packaging details that include export standard wooden
cases.
The PW-ZMGX660 features a reciprocating bottle feeding module
driven by a servo motor, which ensures accurate and efficient
filling of cell culturing medium. The capping torque control is
also precise, with each capping unit being controlled by a servo
motor that is preset to a specific torque. If the preset torque is
not reached during capping, the servo motor will automatically
tighten the cap to the desired torque.
Another notable feature of this machine is its capping head lift,
which is controlled by a high-power servo motor. The machine also
comes equipped with a 30L buffer tank or buffer bag, complete with
an automatic weighing system that ensures a stable flow rate of the
six-channel liquid output. This ensures the stability of the
peristaltic pump filling accuracy, making it an ideal choice for
delicate cell culture applications.
The machine's touch screen is sourced from Fuji, a reputable brand
from Japan. It is user-friendly and easy to operate, making it an
ideal choice for a wide range of users.
The PERWIN PW-ZMGX660 Cellular Culturing Media Filler is an
excellent choice for cellular culture medium filling applications.
It is suitable for use in a wide range of industries, including
biotechnology, pharmaceuticals, and research laboratories. It is
capable of filling a variety of cell culturing media with speed and
accuracy, making it a reliable choice for any application that
requires precise and efficient filling.
Whether you need a filling machine for small-scale research
applications or large-scale industrial production, the PERWIN
PW-ZMGX660 is an excellent choice. With a supply ability of
10pcs/month and a delivery time of 60 working days, you can be sure
of its availability when you need it.
Customization:
The minimum order quantity for the product is one, and the price is
negotiable. The packaging details include Export Standard Wooden
Cases, and the delivery time is 60 working days. The payment terms
are TT, and the supply ability is 10pcs/month.
The Cell culture medium filling machine is equipped with a Delta
servo motor from China, which ensures high precision and stability.
The capping method used is six groups of capping units controlled
by servo motors, each group is controlled by servo motors
individually, three-jaw capping head. The bottle cap can be
unscrewed in the reverse direction and screwed on in the forward
direction.
The buffer tank (bag) of the Cell culture medium filling machine
has a 30L capacity and is equipped with an automatic weighing
system. This system helps to keep the six-channel liquid output
from the buffer tank (bag) at a relatively stable flow rate, and
the liquid flow and flow rate supplied to the peristaltic pump are
stable. This ensures the stability of the peristaltic pump filling
accuracy.
The compressed air required for the Cell culture medium filling
machine is 0.4~0.7Mpa, and the filling accuracy is ≦±1%.
Packing and Shipping:
Product Packaging:
- 1 Media Filling Machine
- Instruction Manual
- Power Cord
- Standard Filling Nozzles
- Tool Kit
Shipping:
- Shipping Method: UPS Ground
- Shipping Weight: 50 lbs
- Shipping Dimensions: 36" x 24" x 18"
- Shipping Cost: Calculated at checkout
